RBEEquipment · Backhoe loader
One wheeled machine that loads, digs, levels and drives itself to the next work front. RBE supplies a JCB backhoe loader — from a range of models, depending on your project and what is available — with an RBE operator, for 15 days or more, from Haldwani or Majkhali (Ranikhet). The most versatile machine on a hill road or a building site, when it is the right fit for your scope.

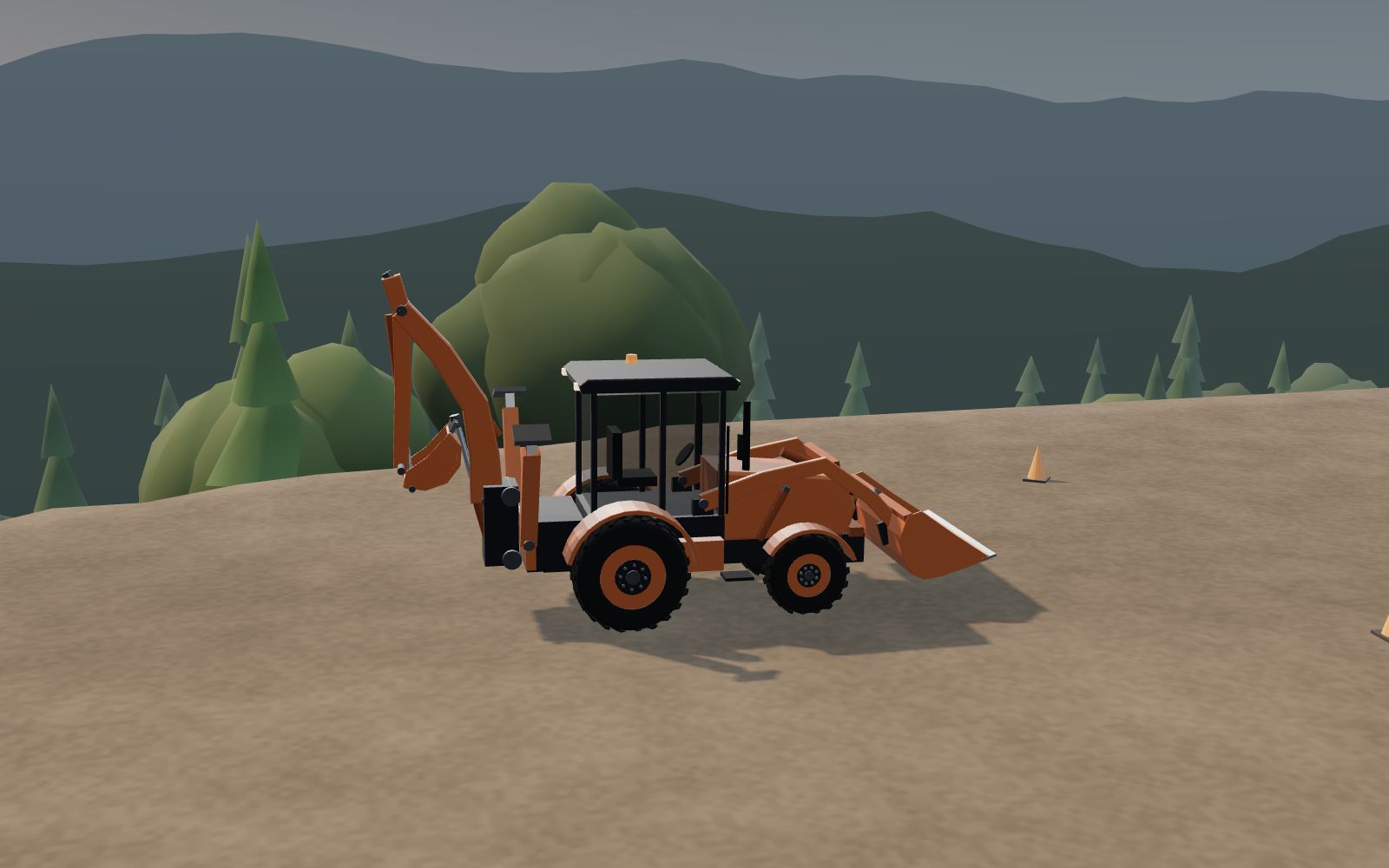

01The machine
A backhoe loader — often called a “JCB” in India, after one well-known manufacturer — is a wheeled tractor with a loader bucket at the front and a digging arm at the rear. It drives to the work front on its own wheels.

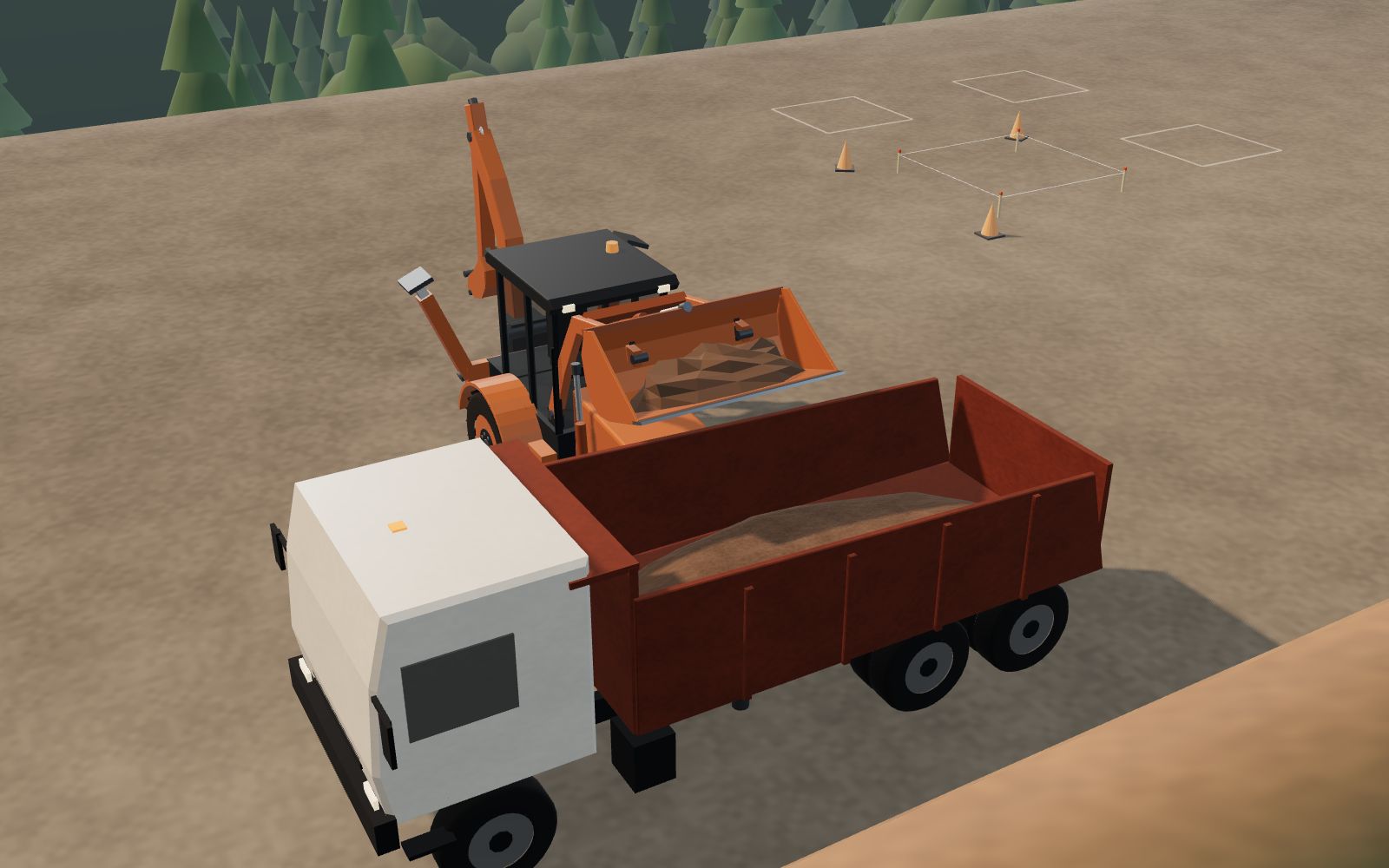

02Loader end
The front bucket (typically about 1.0–1.1 m³) crowds into a stockpile, lifts to tipper height and loads it — the same bucket back-fills, levels and clears.

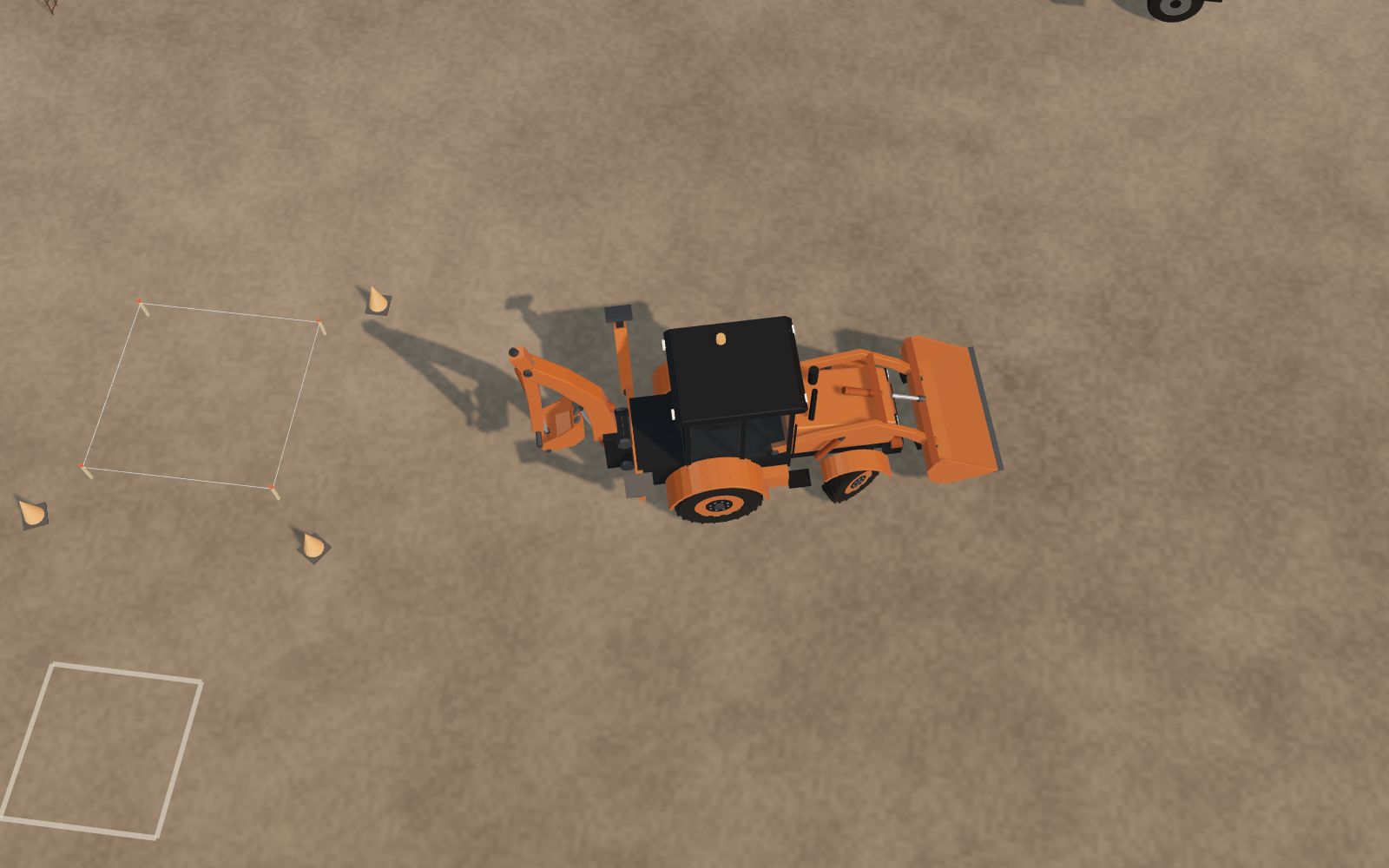

03Mobility
On a narrow plot or a single-lane hill road, the machine reverses, turns and re-positions without a second machine or a wide turning area.

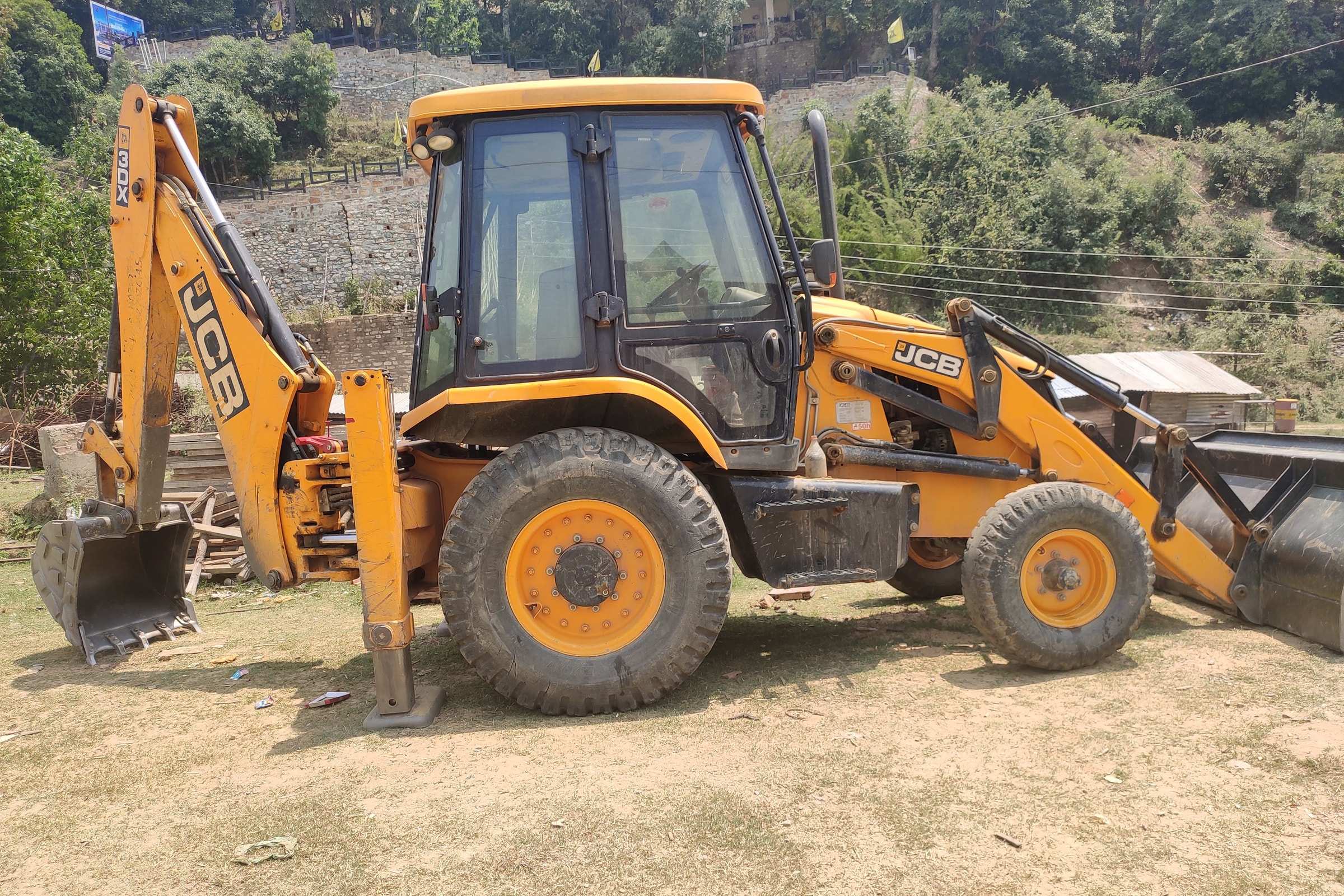

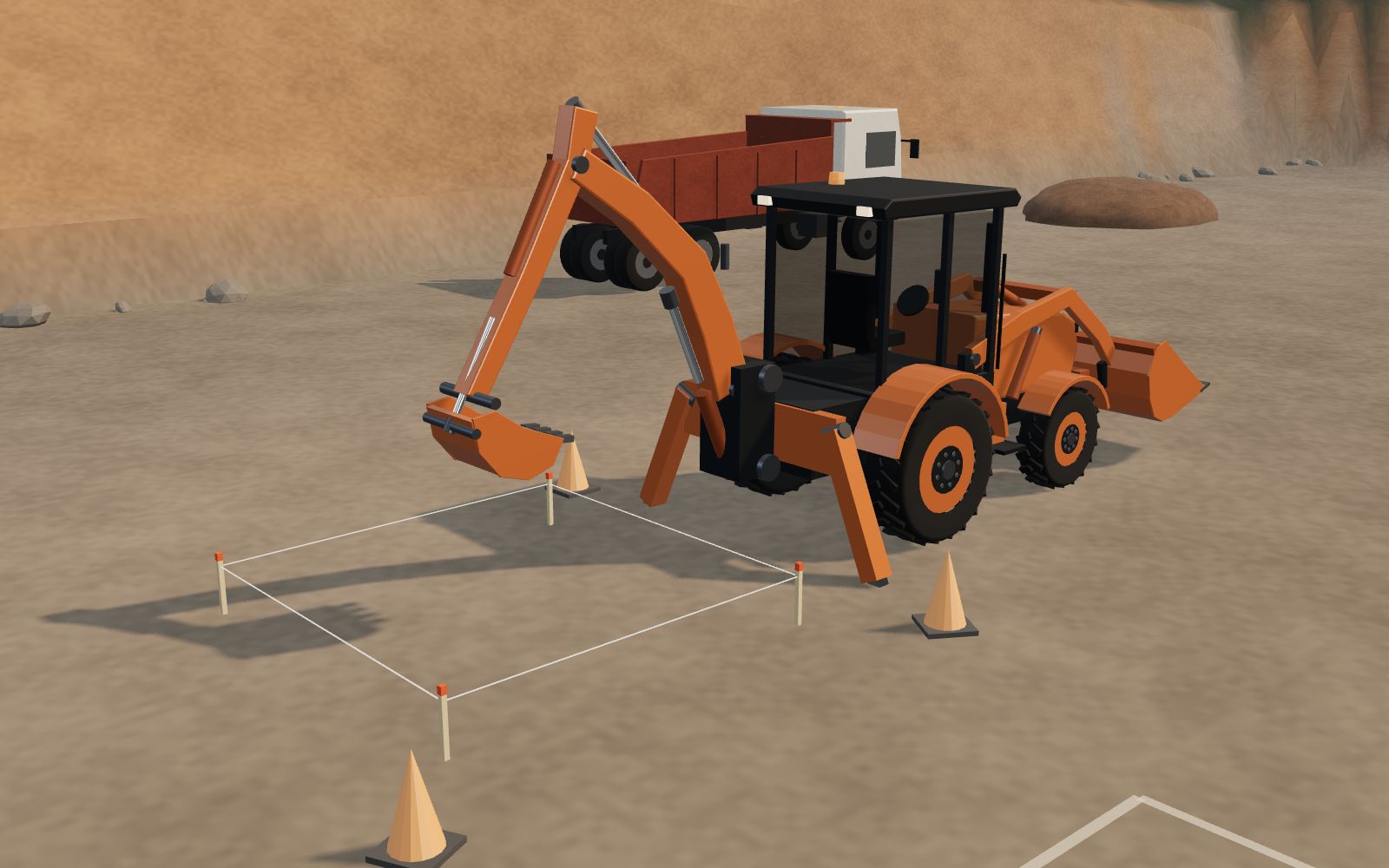

04Stabilisers
The stabiliser legs lower onto firm ground and lift the rear slightly, so the backhoe can dig without rocking the machine. The seat turns to face the rear.

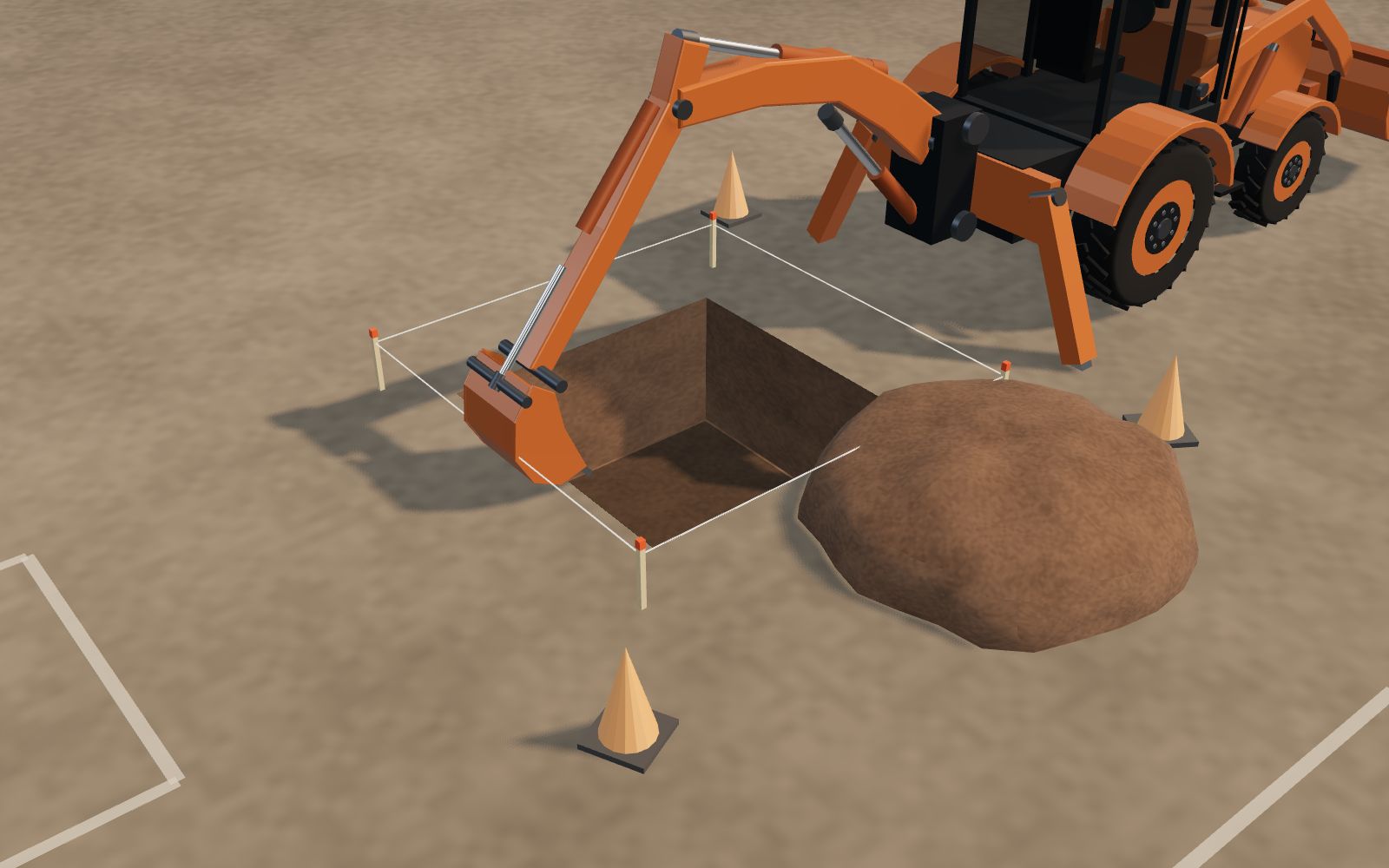

05Backhoe end
Here: a 2.4 m column footing dug in three passes to 1.8 m, spoil kept beside the pit for back-fill. Maximum dig depth for this class is about 4.5–6 m; practical depth depends on soil and shoring.

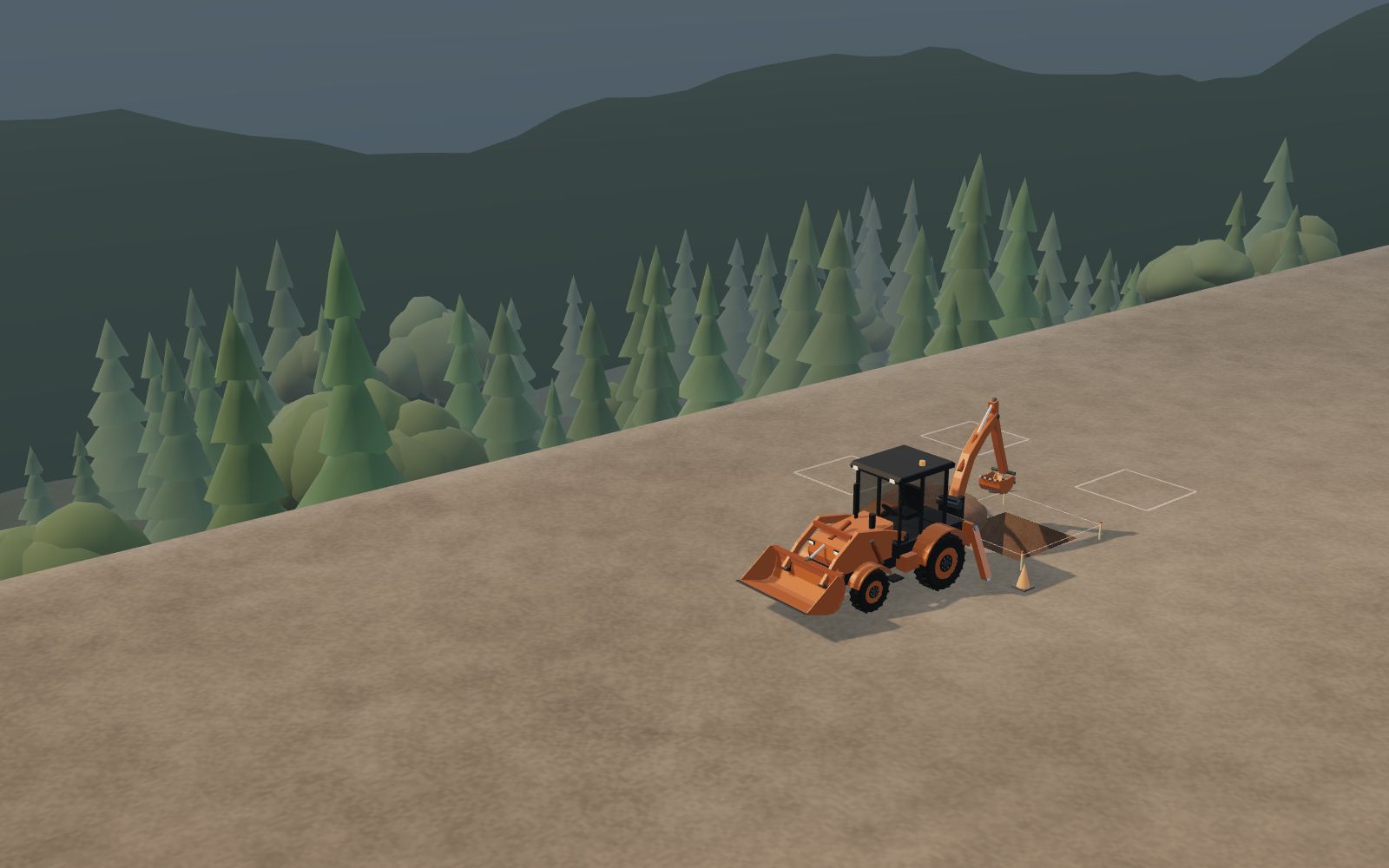

06Your site
Loading, digging, back-filling and moving between work fronts on one shift. Tell us the scope and we will confirm whether a backhoe loader is the right machine.
Typical 7–8 t class machine, modelled to scale. Depths and heights read live from the model.
02What it does on site
RBE has a hydraulic rock breaker. If your work runs into rock, say so in your enquiry so the breaker and its dates are part of the quote. Large rock faces and continuous rock excavation are still tracked-excavator work.
See these tasks organised by project: road construction, hill cutting, site development, trenching and utilities.
03Typical specification
RBE works with JCB backhoe loaders across a range of models. Which model goes to your site depends on the work and on availability for your dates, so there is no single specification to publish. The ranges here are typical for the 7–8 tonne backhoe loaders used on Indian sites — they are not a promise about the machine you receive. The model and its specification are confirmed in your quote.
About 4.5 to 6 metres at maximum, depending on the model and dipper.
Practical trench depth on site is usually less and depends on soil, shoring and safety.
04Honest fit
Sending the wrong machine wastes your schedule and ours. RBE rents backhoe loaders only. If your scope looks like the right-hand column, a tracked excavator should be the main machine — a backhoe loader can still support it.
05Working in the hills
Road width, hairpin bends and the last few hundred metres to the plot decide how the machine arrives. We ask for these before confirming a date.
Loose debris over rock and soft road shoulders mean the machine must work from stable ground, with stabilisers on firm footing.
From about June to September, slips and road closures are part of the plan. Mobilise early and keep schedule buffer.
At remote sites, diesel, the operator’s stay and breakdown handling are agreed before the machine leaves. RBE’s Majkhali base means inner-hill sites are not supported only from the plains.
More on terrain by area in the Kumaon service area guide, and season planning in monsoon working.
06Rental terms
RBE does not rent by the hour or the day. The minimum is 15 days, and every rental includes an operator. Tell us the scope and we will suggest the period that matches it; everything included is stated in writing before the machine is dispatched.
→ Check availability
Send the project location, type of work, start date and how long you need the machine (15 days minimum). RBE confirms availability, how the machine reaches your site and the full terms in writing — operator included.
Enquiry hours · 8:00 AM – 8:00 PM
